Central Valley Enhanced

Acoustic Tagging Project

logo





Hatchery-origin rice field reared fall-run Chinook salmon

2019-2020 Season (PROVISIONAL DATA)



1. Project Status


Telemetry Study Template for this study can be found here

setwd(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products", sep = ""))

tagcodes <- as.data.frame(fread("qry_HexCodes.txt", stringsAsFactors = F))
tagcodes$RelDT <- as.POSIXct(tagcodes$RelDT, format = "%m/%d/%Y %I:%M:%S %p", tz = "Etc/GMT+8")
latest <- read.csv("latest_download.csv", stringsAsFactors = F)

study_tagcodes <- tagcodes[tagcodes$StudyID == "UCDRice2020",]


if (nrow(study_tagcodes) == 0){
  cat("Project has not yet begun")
}else{
  cat(paste("Project began on ", min(study_tagcodes$RelDT), ", see tagging details below:", sep = ""))


  study_tagcodes$Release <- "March Release"
  study_tagcodes[study_tagcodes$RelDT == as.POSIXct("2020-05-30 22:00:00", tz = "Etc/GMT+8"), "Release"] <- "May Release - Nimbus control"
  study_tagcodes[study_tagcodes$RelDT == as.POSIXct("2020-05-30 22:01:00", tz = "Etc/GMT+8"), "Release"] <- "May Release - Coleman control"
  study_tagcodes[study_tagcodes$RelDT == as.POSIXct("2020-05-30 21:59:00", tz = "Etc/GMT+8"), "Release"] <- "May Release - Rice field rear"

  release_stats <- aggregate(list(First_release_time = study_tagcodes$RelDT),
                             by= list(Release = study_tagcodes$Release),
                             FUN = min)
  release_stats <- merge(release_stats,
                         aggregate(list(Last_release_time = study_tagcodes$RelDT),
                             by= list(Release = study_tagcodes$Release),
                             FUN = max),
                         by = c("Release"))


  release_stats <- merge(release_stats, aggregate(list(Number_fish_released =
                                                         study_tagcodes$TagID_Hex),
                             by= list(Release = study_tagcodes$Release),
                             FUN = function(x) {length(unique(x))}),
                         by = c("Release"))

  release_stats <- merge(release_stats,
                         aggregate(list(Release_location = study_tagcodes$Rel_loc),
                             by= list(Release = study_tagcodes$Release),
                             FUN = function(x) {head(x,1)}),
                         by = c("Release"))
  release_stats <- merge(release_stats,
                         aggregate(list(Release_rkm = study_tagcodes$Rel_rkm),
                             by= list(Release = study_tagcodes$Release),
                             FUN = function(x) {head(x,1)}),
                         by = c("Release"))
  release_stats <- merge(release_stats,
                         aggregate(list(Mean_length = study_tagcodes$Length),
                             by= list(Release = study_tagcodes$Release),
                             FUN = mean, na.rm = T),
                         by = c("Release"))
  release_stats <- merge(release_stats,
                         aggregate(list(Mean_weight = study_tagcodes$Weight),
                             by= list(Release = study_tagcodes$Release),
                             FUN = mean, na.rm = T),
                         by = c("Release"))

    release_stats2<-release_stats[,-3]
  colnames(release_stats2)[2]<-"Release time"

  release_stats[,c("Mean_length", "Mean_weight")] <- round(release_stats[,c("Mean_length", "Mean_weight")],1)

  release_stats$First_release_time <- format(release_stats$First_release_time, tz = "Etc/GMT+8")

  release_stats$Last_release_time <- format(release_stats$Last_release_time, tz = "Etc/GMT+8")

  kable(release_stats, format = "html") %>%
          kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left")
}
## Project began on 2020-03-20 18:20:00, see tagging details below:
Release First_release_time Last_release_time Number_fish_released Release_location Release_rkm Mean_length Mean_weight
March Release 2020-03-20 18:20:00 2020-03-20 18:20:00 344 Elkhorn 183.800 77.6 5.6
May Release - Coleman control 2020-05-30 22:01:00 2020-05-30 22:01:00 100 Elkhorn 207.738 91.0 8.8
May Release - Nimbus control 2020-05-30 22:00:00 2020-05-30 22:00:00 209 Elkhorn 207.738 93.4 9.1
May Release - Rice field rear 2020-05-30 21:59:00 2020-05-30 21:59:00 295 Elkhorn 207.738 90.6 9.1



2. Real-time Fish Detections


Study is complete, tags are no longer active. All times in Pacific Standard Time.

setwd(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products", sep = ""))

library(CDECRetrieve)
library(reshape2)

detects_study <- fread(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products\\Study_detection_files\\detects_UCDRice2020.csv", sep = ""))


if(nrow(detects_study)>0){
  detects_study$DateTime_PST <- as.POSIXct(detects_study$DateTime_PST, format = "%Y-%m-%d %H:%M:%S", "Etc/GMT+8")
  detects_study <- merge(detects_study, study_tagcodes[,c("TagID_Hex", "RelDT", "StudyID", "Release", "tag_life")], by.x = "TagCode", by.y = "TagID_Hex")
}

detects_tower <- detects_study[detects_study$general_location == "TowerBridge",]

#wlk_flow <- read.csv("wlk.csv")

if (nrow(detects_tower) == 0){
  plot(1:2, type = "n", xlab = "",xaxt = "n", yaxt = "n", ylab = "Number of fish arrivals per day")
  text(1.5,1.5, labels = "NO DETECTIONS YET", cex = 2)
} else {

  detects_tower <- merge(detects_tower,aggregate(list(first_detect = detects_tower$DateTime_PST), by = list(TagCode= detects_tower$TagCode), FUN = min))

  detects_tower$Day <- as.Date(detects_tower$first_detect, "Etc/GMT+8")

  starttime <- as.Date(min(detects_tower$RelDT), "Etc/GMT+8")
  ## Endtime should be either now, or end of predicted tag life, whichever comes first
  endtime <- min(as.Date(format(Sys.time(), "%Y-%m-%d")), max(as.Date(detects_tower$RelDT)+(detects_tower$tag_life*1.5)))


  ## download wilkins slough flow data
  library(dataRetrieval)
  wlk_flow <- readNWISuv(siteNumbers = "11390500", parameterCd="00060", startDate = starttime, endDate = endtime+1)

  wlk_flow$datetime <- as.Date(format(wlk_flow$dateTime, "%Y-%m-%d"))
  wlk_flow_day <- aggregate(list(parameter_value = wlk_flow$X_00060_00000),
                            by = list(Day = wlk_flow$datetime),
                            FUN = mean, na.rm = T)


  daterange <- data.frame(Day = seq.Date(from = starttime, to = endtime, by = "day"))

  rels <- unique(study_tagcodes[study_tagcodes$StudyID == unique(detects_tower$StudyID), "Release"])
  rel_num <- length(rels)
  rels_no_detects <- as.character(rels[!(rels %in% unique(detects_tower$Release))])

  tagcount <- aggregate(list(unique_tags = detects_tower$TagCode), by = list(Day = detects_tower$Day, Release = detects_tower$Release ), FUN = function(x){length(unique(x))})
  tagcount1 <- dcast(tagcount, Day ~ Release)

  daterange1 <- merge(daterange, tagcount1, all.x=T)

  if(length(rels_no_detects)>0){
    for(i in rels_no_detects){
      daterange1 <- cbind(daterange1, x=NA)
      names(daterange1)[names(daterange1) == 'x'] <- paste(i)
    }
  }

  daterange2 <- merge(daterange1, wlk_flow_day, by = "Day", all.x = T)

  rownames(daterange2) <- daterange2$Day
  daterange2$Day <- NULL

  par(mar=c(6, 5, 2, 5) + 0.1)
  barp <- barplot(t(daterange2[,1:ncol(daterange2)-1]), plot = FALSE, beside = T)
  barplot(t(daterange2[,1:ncol(daterange2)-1]), beside = T, col=viridis_pal()(rel_num),
          xlab = "", ylab = "Number of fish arrivals per day",
          ylim = c(0,max(daterange2[,1:ncol(daterange2)-1], na.rm = T)*1.2),
          las = 2, xlim=c(0,max(barp)+1), cex.lab = 1.5, yaxt = "n", xaxt ="n")#,
  #border=NA
  #legend.text = colnames(daterange2[,1:ncol(daterange2)-1]),
  #args.legend = list(x ='topright', bty='n', inset=c(-0.2,0)), title = "Release Group")
  legend(x ='topleft', legend = colnames(daterange2)[1:ncol(daterange2)-1], fill= viridis_pal()(rel_num), horiz = T, title = "Release")
  ybreaks <- if(max(daterange2[,1:ncol(daterange2)-1], na.rm = T) < 4) {max(daterange2[,1:ncol(daterange2)-1], na.rm = T)} else {5}
  xbreaks <- if(ncol(barp) > 10) {seq(1, ncol(barp), 2)} else {1:ncol(barp)}
  barpmeans <- colMeans(barp)
  axis(1, at = barpmeans[xbreaks], labels = rownames(daterange2[xbreaks,]), las = 2)
  axis(2, at = pretty(0:max(daterange2[,1:ncol(daterange2)-1], na.rm = T), ybreaks))

  par(new=T)

  plot(x = barpmeans, daterange2$parameter_value, yaxt = "n", xaxt = "n", ylab = "", xlab = "", col = "blue", type = "l", lwd=2, xlim=c(0,max(barp)+1), ylim = c(min(daterange2$parameter_value, na.rm = T), max(daterange2$parameter_value, na.rm=T)*1.1))#, ylab = "Returning adults", xlab= "Outmigration year", yaxt="n", col="red", pch=20)
  axis(side = 4)#, labels = c(2000:2016), at = c(2000:2016))
  mtext("Flow (cfs) at Wilkins Slough", side=4, line=3, cex=1.5, col="blue")
}
2.2 Detections at Tower Bridge (downtown Sacramento) versus Sacramento River flows at Wilkins Slough

2.2 Detections at Tower Bridge (downtown Sacramento) versus Sacramento River flows at Wilkins Slough


setwd(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products", sep = ""))

detects_benicia <- detects_study[detects_study$general_location %in% c("Benicia_west", "Benicia_east"),]

if (nrow(detects_benicia)>0) {
  detects_benicia <- merge(detects_benicia,aggregate(list(first_detect = detects_benicia$DateTime_PST), by = list(TagCode= detects_benicia$TagCode), FUN = min))

  detects_benicia$Day <- as.Date(detects_benicia$first_detect, "Etc/GMT+8")

  starttime <- as.Date(min(detects_benicia$RelDT), "Etc/GMT+8")
  #endtime <- as.Date(c(Sys.time()))#, max(detects_benicia$first_detect)+60*60*24)))
  #wlk_flow <- cdec_query("COL", "20", "H", starttime, endtime+1)
  #wlk_flow$datetime <- as.Date(wlk_flow$datetime)
  #wlk_flow_day <- aggregate(list(parameter_value = wlk_flow$parameter_value), by = list(Day = wlk_flow$datetime), FUN = mean, na.rm = T)

  daterange <- data.frame(Day = seq.Date(from = starttime, to = endtime, by = "day"))

  rels <- unique(study_tagcodes[study_tagcodes$StudyID == unique(detects_benicia$StudyID), "Release"])
  rel_num <- length(rels)
  rels_no_detects <- as.character(rels[!(rels %in% unique(detects_benicia$Release))])

  tagcount <- aggregate(list(unique_tags = detects_benicia$TagCode), by = list(Day = detects_benicia$Day, Release = detects_benicia$Release ), FUN = function(x){length(unique(x))})
  tagcount1 <- dcast(tagcount, Day ~ Release)

  daterange1 <- merge(daterange, tagcount1, all.x=T)

  if(length(rels_no_detects)>0){
    for(i in rels_no_detects){
      daterange1 <- cbind(daterange1, x=NA)
      names(daterange1)[names(daterange1) == 'x'] <- paste(i)
    }
  }

  #daterange2 <- merge(daterange1, wlk_flow_day, by = "Day", all.x = T)
  daterange2 <- daterange1

  rownames(daterange2) <- daterange2$Day
  daterange2$Day <- NULL

  par(mar=c(6, 5, 2, 5) + 0.1)
  barp <- barplot(t(daterange2[,1:ncol(daterange2)]), plot = FALSE, beside = T)
  barplot(t(daterange2[,1:ncol(daterange2)]), beside = T, col=viridis_pal()(rel_num),
          xlab = "", ylab = "Number of fish arrivals per day",
          ylim = c(0,max(daterange2[,1:ncol(daterange2)], na.rm = T)*1.2),
          las = 2, xlim=c(0,max(barp)+1), cex.lab = 1.5, yaxt = "n", xaxt = "n")#,
          #legend.text = colnames(daterange2[,1:ncol(daterange2)-1]),
          #args.legend = list(x ='topright', bty='n', inset=c(-0.2,0)), title = "Release Group")
  legend(x ='topleft', legend = colnames(daterange2)[1:ncol(daterange2)], fill= viridis_pal()(rel_num), horiz = T, title = "Release")
  ybreaks <- if(max(daterange2[,1:ncol(daterange2)], na.rm = T) < 4) {max(daterange2[,1:ncol(daterange2)], na.rm = T)} else {5}
  xbreaks <- if(ncol(barp) > 10) {seq(1, ncol(barp), 2)} else {1:ncol(barp)}
  barpmeans <- colMeans(barp)
  axis(1, at = barpmeans[xbreaks], labels = rownames(daterange2)[xbreaks], las = 2)
  axis(2, at = pretty(0:max(daterange2[,1:ncol(daterange2)], na.rm = T), ybreaks))
  box()

#par(new=T)

#plot(x = barpmeans, daterange2$parameter_value, yaxt = "n", xaxt = "n", ylab = "", xlab = "", col = "blue", type = "l", lwd=2, xlim=c(0,max(barp)+1), ylim = c(min(daterange2$parameter_value, na.rm = T), max(daterange2$parameter_value, na.rm=T)*1.1))#, ylab = "Returning adults", xlab= "Outmigration year", yaxt="n", col="red", pch=20)
#axis(side = 4)#, labels = c(2000:2016), at = c(2000:2016))
#mtext("Flow (cfs) at Colusa Bridge", side=4, line=3, cex=1.5, col="blue")

}else{
  plot(1:2, type = "n", xlab = "",xaxt = "n", yaxt = "n", ylab = "Number of fish arrivals per day")
  text(1.5,1.5, labels = "NO DETECTIONS YET", cex = 2)
}
2.3 Detections at Benicia Bridge

2.3 Detections at Benicia Bridge

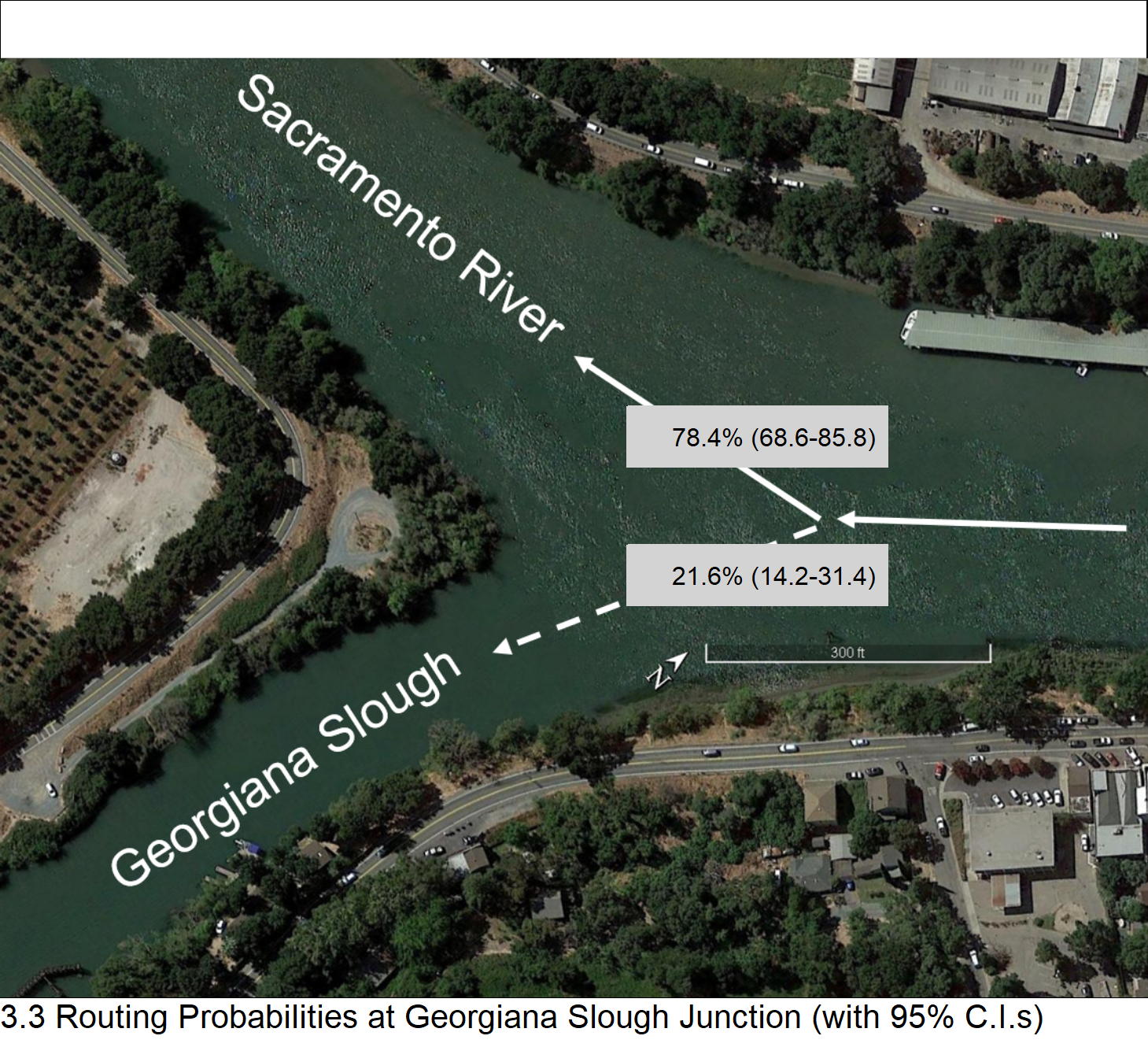

3. Survival and Routing Probability


setwd(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products", sep = ""))

library(data.table)
library(RMark)

gen_locs <- read.csv("realtime_locs.csv", stringsAsFactors = F)

study_count <- nrow(study_tagcodes)

if (nrow(detects_tower) == 0){
    WR.surv <- data.frame("Release"=NA, "Survival (%)"="NO DETECTIONS YET", "SE"=NA, "95% lower C.I."=NA, "95% upper C.I."=NA, "Detection efficiency (%)"=NA)
     colnames(WR.surv) <- c("Release", "Survival (%)", "SE", "95% lower C.I.", "95% upper C.I.", "Detection efficiency (%)")

    print(kable(WR.surv, row.names = F, "html", caption = "3.1 Minimum survival to Tower Bridge (using CJS survival model). If Yolo Bypass Weirs are overtopping during migration, fish may have taken that route, and therefore this is a minimum estimate of survival") %>%
            kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))
} else {

  ## Only do survival to Sac for now
  test <- detects_study[detects_study$rkm > 168 & detects_study$rkm < 175,]

  ## Create inp for survival estimation

  inp <- as.data.frame(dcast(test, TagCode ~ rkm, fun.aggregate = length))

  ## Sort columns by river km in descending order
  # Count number of genlocs
  gen_loc_sites <- ncol(inp)-1

  if(gen_loc_sites <2){
    WR.surv <- data.frame("Release"=NA, "Survival (%)"="NOT ENOUGH DETECTIONS", "SE"=NA, "95% lower C.I."=NA, "95% upper C.I."=NA, "Detection efficiency (%)"=NA)
     colnames(WR.surv) <- c("Release", "Survival (%)", "SE", "95% lower C.I.", "95% upper C.I.", "Detection efficiency (%)")

    print(kable(WR.surv, row.names = F, "html", caption = "3.1 Minimum survival to Tower Bridge (using CJS survival model). If Yolo Bypass Weirs are overtopping during migration, fish may have taken that route, and therefore this is a minimum estimate of survival") %>%
            kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))
  }else{

    inp <- inp[,c(1,order(names(inp[,2:(gen_loc_sites+1)]), decreasing = T)+1)]

    inp <- merge(study_tagcodes, inp, by.x = "TagID_Hex", by.y = "TagCode", all.x = T)

    inp2 <- inp[,(ncol(inp)-gen_loc_sites+1):ncol(inp)]
    inp2[is.na(inp2)] <- 0
    inp2[inp2 > 0] <- 1

    inp <- cbind(inp, inp2)
    groups <- as.character(sort(unique(inp$Release)))
    test$Release <- factor(test$Release, levels = groups)

    inp[,groups] <- 0
    for (i in groups) {
      inp[as.character(inp$Release) == i, i] <- 1
    }

    inp$inp_final <- paste("1",apply(inp2, 1, paste, collapse=""),sep="")


    if(length(groups) > 1){
    ## make sure factor levels have a release that has detections first. if first release in factor order has zero detectins, model goes haywire
      inp.df <- data.frame(ch = as.character(inp$inp_final), freq = 1, rel = factor(inp$Release, levels = names(sort(table(test$Release),decreasing = T))), stringsAsFactors = F)

      WR.process <- process.data(inp.df, model="CJS", begin.time=1, groups = "rel")
      WR.ddl <- make.design.data(WR.process)

      WR.mark.all <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time),p=list(formula=~time)), silent = T, output = F)

      WR.mark.rel <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time*rel),p=list(formula=~time)), silent = T, output = F)

      WR.surv <- round(WR.mark.all$results$real[1,c("estimate", "se", "lcl", "ucl")] * 100,1)
      WR.surv <- rbind(WR.surv, round(WR.mark.rel$results$real[seq(from=1,to=length(groups)*2,by = 2),c("estimate", "se", "lcl", "ucl")] * 100,1))
      WR.surv$Detection_efficiency <- NA
      WR.surv[1,"Detection_efficiency"] <-   round(WR.mark.all$results$real[gen_loc_sites+1,"estimate"] * 100,1)

      WR.surv <- cbind(c("ALL",names(sort(table(test$Release),decreasing = T))), WR.surv)
    }
    if(length(unique(inp[,groups])) < 2){
      inp$inp_final <- paste("1",apply(inp2, 1, paste, collapse=""), " ", 1,sep = "")
      write.table(inp$inp_final,"WRinp.inp",row.names = F, col.names = F, quote = F)
      WRinp <- convert.inp("WRinp.inp")
      WR.process <- process.data(WRinp, model="CJS", begin.time=1)

      WR.ddl <- make.design.data(WR.process)

      WR.mark.all <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time),p=list(formula=~time)), silent = T, output = F)

      WR.mark.rel <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time),p=list(formula=~time)), silent = T, output = F)

      WR.surv <- round(WR.mark.all$results$real[1,c("estimate", "se", "lcl", "ucl")] * 100,1)
      WR.surv <- rbind(WR.surv, round(WR.mark.rel$results$real[seq(from=1,to=length(groups)*2,by = 2),c("estimate", "se", "lcl", "ucl")] * 100,1))
      WR.surv$Detection_efficiency <- NA
      WR.surv[1,"Detection_efficiency"] <- round(WR.mark.all$results$real[gen_loc_sites+1,"estimate"] * 100,1)

      WR.surv <- cbind(c("ALL", groups), WR.surv)
    }


    colnames(WR.surv) <- c("Release", "Survival (%)", "SE", "95% lower C.I.", "95% upper C.I.", "Detection efficiency (%)")

    print(kable(WR.surv, row.names = F, "html", caption = "3.1 Minimum survival to Tower Bridge (using CJS survival model). If Yolo Bypass Weirs are overtopping during migration, fish may have taken that route, and therefore this is a minimum estimate of survival") %>%
            kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))
  }
}
3.1 Minimum survival to Tower Bridge (using CJS survival model). If Yolo Bypass Weirs are overtopping during migration, fish may have taken that route, and therefore this is a minimum estimate of survival
Release Survival (%) SE 95% lower C.I. 95% upper C.I. Detection efficiency (%)
ALL 35.1 1.6 32.1 38.2 97.1
March Release 27.4 2.4 22.9 32.3 NA
May Release - Rice field rear 44.2 2.9 38.6 49.9 NA
May Release - Nimbus control 34.6 3.3 28.4 41.3 NA
May Release - Coleman control 36.0 4.8 27.2 45.8 NA
setwd(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products", sep = ""))

route_results_possible <- F
if (nrow(detects_study) == 0){
    results_short <- data.frame("Measure"=NA, "Estimate"="NO DETECTIONS YET", "SE"=NA, "95% lower C.I."=NA, "95% upper C.I."=NA)
    colnames(results_short) <- c("Measure", "Estimate", "SE", "95% lower C.I.", "95% upper C.I.")
    print(kable(results_short, row.names = F, "html", caption = "3.2 Reach-specific survival and probability of entering Georgiana Slough") %>%
            kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))
} else {

  ## Only do survival to Georg split for now
  test2 <- detects_study[detects_study$general_location %in% c("ButteBrRT","TowerBridge", "I80-50_Br", "Sac_BlwGeorgiana", "Sac_BlwGeorgiana2", "Georgiana_Slough1", "Georgiana_Slough2"),]

  ## We can only do multistate model if there is at least one detection in each route

  if(nrow(test2[test2$general_location %in% c("Sac_BlwGeorgiana", "Sac_BlwGeorgiana2"),]) == 0 |
     nrow(test2[test2$general_location %in% c("Georgiana_Slough1", "Georgiana_Slough2"),]) == 0){
    results_short <- data.frame("Measure"=NA, "Estimate"="NOT ENOUGH DETECTIONS", "SE"=NA, "95% lower C.I."=NA, "95% upper C.I."=NA)
    colnames(results_short) <- c("Measure", "Estimate", "SE", "95% lower C.I.", "95% upper C.I.")
    print(kable(results_short, row.names = F, "html", caption = "3.2 Reach-specific survival and probability of entering Georgiana Slough") %>%
            kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))
  }else{

    ## Make tagcode character
    study_tagcodes$TagID_Hex <- as.character(study_tagcodes$TagID_Hex)
    ## Make a crosstab query with frequencies for all tag/location combination
    test2$general_location <- factor(test2$general_location, levels = c("ButteBrRT","TowerBridge", "I80-50_Br", "Sac_BlwGeorgiana", "Sac_BlwGeorgiana2", "Georgiana_Slough1", "Georgiana_Slough2"))
    test2$TagCode <- factor(test2$TagCode, levels = study_tagcodes$TagID_Hex)
    mytable <- table(test2$TagCode, test2$general_location) # A will be rows, B will be columns

    ## Change all frequencies bigger than 1 to 1. Here you could change your minimum cutoff to 2 detections, and then make another command that changes all detections=1 to 0
    mytable[mytable>0] <- "A"

    ## Order in order of rkm
    mytable2 <- mytable[, c("ButteBrRT","TowerBridge", "I80-50_Br", "Sac_BlwGeorgiana", "Sac_BlwGeorgiana2", "Georgiana_Slough1", "Georgiana_Slough2")]

    ## Now sort the crosstab rows alphabetically
    mytable2 <- mytable2[order(row.names(mytable2)),]

    mytable2[which(mytable2[, "Sac_BlwGeorgiana"]=="A"), "Sac_BlwGeorgiana"] <- "A"
    mytable2[which(mytable2[, "Sac_BlwGeorgiana2"]=="A"), "Sac_BlwGeorgiana2"] <- "A"
    mytable2[which(mytable2[, "Georgiana_Slough1"]=="A"), "Georgiana_Slough1"] <- "B"
    mytable2[which(mytable2[, "Georgiana_Slough2"]=="A"), "Georgiana_Slough2"] <- "B"

    ## Make a crosstab query with frequencies for all weekly Release groups
    #test2$Release <- factor(test2$Release)
    #mytable3 <- table(test2$TagCode, test2$Release) # A will be rows, B will be columns

    ## Change all frequencies bigger than 1 to 1. Here you could change your minimum cutoff to 2 detections, and then make another command that changes all detections=1 to 0
    #mytable3[mytable3>0] <- 1

    ## Order in order of rkm
    #mytable4 <- mytable3[, order(colnames(mytable3))]

    ## Now sort the crosstab rows alphabetically
    #mytable4 <- mytable4[order(row.names(mytable4)),]

    ## Now order the study_tagcodes table the same way
    study_tagcodes <- study_tagcodes[order(study_tagcodes$TagID_Hex),]

    ## Paste together (concatenate) the data from each column of the crosstab into one string per row, add to tagging_meta.
    ## For this step, make sure both are sorted by FishID
    study_tagcodes$inp_part1 <- apply(mytable2[,1:3],1,paste,collapse="")
    study_tagcodes$inp_partA <- apply(mytable2[,4:5],1,paste,collapse="")
    study_tagcodes$inp_partB <- apply(mytable2[,6:7],1,paste,collapse="")
    #study_tagcodes$inp_group <- apply(mytable4,1,paste,collapse=" ")

    ## We need to have a way of picking which route to assign to a fish if it was detected by both georg and blw-georg recvs
    ## We will say that the last detection at that junction is what determines the route it took

    ## find last detection at each genloc
    departure <- aggregate(list(depart = test2$DateTime_PST), by = list(TagID_Hex = test2$TagCode, last_location = test2$general_location), FUN = max)
    ## subset for just juncture locations
    departure <- departure[departure$last_location %in% c("Sac_BlwGeorgiana", "Sac_BlwGeorgiana2", "Georgiana_Slough1", "Georgiana_Slough2"),]
    ## Find genloc of last known detection per tag
    last_depart <- aggregate(list(depart = departure$depart), by = list(TagID_Hex = departure$TagID_Hex), FUN = max)

    last_depart1 <- merge(last_depart, departure)
    study_tagcodes <- merge(study_tagcodes, last_depart1[,c("TagID_Hex", "last_location")], by = "TagID_Hex", all.x = T)

    ## Assume that the Sac is default pathway, and for fish that were detected in neither route, it would get a "00" in inp so doesn't matter anyway
    study_tagcodes$inp_final <- paste("A",study_tagcodes$inp_part1, study_tagcodes$inp_partA," 1 ;", sep = "")

    ## now put in exceptions...fish that were seen in georgiana last
    study_tagcodes[study_tagcodes$last_location %in% c("Georgiana_Slough1", "Georgiana_Slough2"), "inp_final"] <- paste("A",study_tagcodes[study_tagcodes$last_location %in% c("Georgiana_Slough1", "Georgiana_Slough2"), "inp_part1"], study_tagcodes[study_tagcodes$last_location %in% c("Georgiana_Slough1", "Georgiana_Slough2"), "inp_partB"]," 1 ;", sep = "")

    ## At this point, some fish might not have been deemed to ever take a route based on last visit analysis. If so, model can't be run

    if(any(grepl(pattern = "A", study_tagcodes$inp_final)==T) & any(grepl(pattern = "B", study_tagcodes$inp_final)==T)){

      write.table(study_tagcodes$inp_final,"WRinp_multistate.inp",row.names = F, col.names = F, quote = F)

      WRinp <- convert.inp("WRinp_multistate.inp")

      dp <- process.data(WRinp, model="Multistrata")

      ddl <- make.design.data(dp)

      #### p ####
      # Can't be seen at 2B or 3B or 4B (butte, tower or I80)
      ddl$p$fix=NA
      ddl$p$fix[ddl$p$stratum == "B" & ddl$p$time %in% c(2,3,4)]=0

      #### Psi ####
      # Only 1 transition allowed:
      # from A to B at time interval 4 to 5

      ddl$Psi$fix=0
      # A to B can only happen for interval 3-4
      ddl$Psi$fix[ddl$Psi$stratum=="A"&
                    ddl$Psi$tostratum=="B" & ddl$Psi$time==4]=NA

      #### Phi a.k.a. S ####
      ddl$S$fix=NA
      # None in B for reaches 1,2,3,4 and fixing it to 1 for 5 (between two georg lines). All getting fixed to 1
      ddl$S$fix[ddl$S$stratum=="B" & ddl$S$time %in% c(1,2,3,4,5)]=1

      # For route A, fixing it to 1 for 5 (between two blw_georg lines)
      ddl$S$fix[ddl$S$stratum=="A" & ddl$S$time==5]=1
      ## We use -1 at beginning of formula to remove intercept. This is because different routes probably shouldn't share the same intercept

      p.timexstratum=list(formula=~-1+stratum:time)
      Psi.stratumxtime=list(formula=~-1+stratum:time)
      S.stratumxtime=list(formula=~-1+stratum:time)

      ## Run model a first time
      S.timexstratum.p.timexstratum.Psi.timexstratum=mark(dp,ddl, model.parameters=list(S=S.stratumxtime,p= p.timexstratum,Psi=Psi.stratumxtime), realvcv = T, silent = T, output = F)

      ## Identify any parameter estimates at 1, which would likely have bad SE estimates.
      profile.intervals <- which(S.timexstratum.p.timexstratum.Psi.timexstratum$results$real$estimate %in% c(0,1) & !S.timexstratum.p.timexstratum.Psi.timexstratum$results$real$fixed == "Fixed")

      ## Rerun model using profile interval estimation for the tricky parameters
      S.timexstratum.p.timexstratum.Psi.timexstratum=mark(dp,ddl, model.parameters=list(S=S.stratumxtime,p= p.timexstratum,Psi=Psi.stratumxtime), realvcv = T, profile.int = profile.intervals, silent = T, output = F)

      results <- S.timexstratum.p.timexstratum.Psi.timexstratum$results$real

      results_short <- results[rownames(results) %in% c("S sA g1 c1 a0 o1 t1",
                                                        "S sA g1 c1 a1 o2 t2",
                                                        "S sA g1 c1 a2 o3 t3",
                                                        "S sA g1 c1 a3 o4 t4",
                                                        "p sA g1 c1 a1 o1 t2",
                                                        "p sA g1 c1 a2 o2 t3",
                                                        "p sA g1 c1 a3 o3 t4",
                                                        "p sA g1 c1 a4 o4 t5",
                                                        "p sB g1 c1 a4 o4 t5",
                                                        "Psi sA toB g1 c1 a3 o4 t4"
                                                        ),]


      results_short <- round(results_short[,c("estimate", "se", "lcl", "ucl")] * 100,1)

      ## Now find estimate and CIs for AtoA route at junction
      Psilist=get.real(S.timexstratum.p.timexstratum.Psi.timexstratum,"Psi",vcv=TRUE)
      Psivalues=Psilist$estimates

      routes <- TransitionMatrix(Psivalues[Psivalues$time==4 & Psivalues$cohort==1,],vcv.real=Psilist$vcv.real)





      results_short$Measure <- c("Survival from release to Butte City","Survival from Butte City to TowerBridge (minimum estimate since fish may have taken Yolo Bypass)", "Survival from TowerBridge to I80-50_Br", "% arrived from I80-50_Br to Georgiana Slough confluence (not survival because fish may have taken Sutter/Steam)","Detection probability at Butte City",
                                 "Detection probability at TowerBridge", "Detection probability at I80-50_Br", "Detection probability at Blw_Georgiana", "Detection probability at Georgiana Slough",
                                 "Routing probability into Georgiana Slough (Conditional on fish arriving to junction)")

      results_short <- results_short[,c("Measure", "estimate", "se", "lcl", "ucl")]
      colnames(results_short) <- c("Measure", "Estimate", "SE", "95% lower C.I.", "95% upper C.I.")

      print(kable(results_short, row.names = F, "html", caption = "3.2 Reach-specific survival and probability of entering Georgiana Slough") %>%
              kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))

      route_results_possible <- T

    } else {
        results_short <- data.frame("Measure"=NA, "Estimate"="NOT ENOUGH DETECTIONS YET", "SE"=NA, "95% lower C.I."=NA, "95% upper C.I."=NA)
    colnames(results_short) <- c("Measure", "Estimate", "SE", "95% lower C.I.", "95% upper C.I.")
    print(kable(results_short, row.names = F, "html", caption = "3.2 Reach-specific survival and probability of entering Georgiana Slough") %>%
            kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))
    }
  }
}
3.2 Reach-specific survival and probability of entering Georgiana Slough
Measure Estimate SE 95% lower C.I. 95% upper C.I.
Survival from release to Butte City 100.0 0.0 34.2 100.0
Survival from Butte City to TowerBridge (minimum estimate since fish may have taken Yolo Bypass) 37.2 1.6 34.2 40.4
Survival from TowerBridge to I80-50_Br 100.0 0.0 100.0 100.0
% arrived from I80-50_Br to Georgiana Slough confluence (not survival because fish may have taken Sutter/Steam) 25.2 2.3 21.0 30.0
Detection probability at Butte City 0.0 0.0 0.0 0.0
Detection probability at TowerBridge 91.5 1.6 88.0 94.1
Detection probability at I80-50_Br 87.3 1.8 83.3 90.5
Detection probability at Blw_Georgiana 100.0 0.0 100.0 100.0
Detection probability at Georgiana Slough 100.0 0.0 100.0 100.0
Routing probability into Georgiana Slough (Conditional on fish arriving to junction) 21.3 4.3 14.1 31.1
library(png)

#Replace the directory and file information with your info
georg <- readPNG("../data/georg.png")

par(mar=c(2,0,0,0))
#Set up the plot area
plot(1:2, type='n', xlab="", ylab="", xaxt = "n", yaxt = "n")

#Get the plot information so the image will fill the plot box, and draw it
lim <- par()
rasterImage(georg, lim$usr[1], lim$usr[3], lim$usr[2], lim$usr[4])
if (nrow(detects_study) == 0){
    legend(x = 1.55,y = 1.6,legend =  "No detections yet",col = "white", box.col = "light gray", bg = "light gray")
    legend(x = 1.55,y = 1.45,legend =  "No detections yet",col = "white", box.col = "light gray", bg = "light gray")
}else if (nrow(test2[test2$general_location %in% c("Sac_BlwGeorgiana", "Sac_BlwGeorgiana2"),]) == 0 |
   nrow(test2[test2$general_location %in% c("Georgiana_Slough1", "Georgiana_Slough2"),]) == 0){
    legend(x = 1.55,y = 1.6,legend =  "Too few detections",col = "white", box.col = "light gray", bg = "light gray")
    legend(x = 1.55,y = 1.45,legend =  "Too few detections",col = "white", box.col = "light gray", bg = "light gray")
}else{
  legend(x = 1.55,y = 1.6,legend =  paste(round(routes$TransitionMat["A","A"],3)*100,"% (",round(routes$lcl.TransitionMat["A","A"],3)*100,"-",round(routes$ucl.TransitionMat["A","A"],3)*100,")", sep =""),col = "white", box.col = "light gray", bg = "light gray")
  legend(1.55,1.45, legend =  paste(round(routes$TransitionMat["A","B"],3)*100,"% (",round(routes$lcl.TransitionMat["A","B"],3)*100,"-",round(routes$ucl.TransitionMat["A","B"],3)*100,")", sep =""), box.col = "light gray", bg = "light gray")
}
  mtext(text = "3.3 Routing Probabilities at Georgiana Slough Junction (with 95% C.I.s)", cex = 1.3, side = 1, line = 0.2, adj = 0)

setwd(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products", sep = ""))

if (nrow(detects_benicia) == 0){
  WR.surv1 <- data.frame("Release Group"=NA, "Survival (%)"="NO DETECTIONS YET", "SE"=NA, "95% lower C.I."=NA, "95% upper C.I."=NA, "Detection efficiency (%)"=NA)
  colnames(WR.surv1) <- c("Release Group", "Survival (%)", "SE", "95% lower C.I.", "95% upper C.I.", "Detection efficiency (%)")
  print(kable(WR.surv1, row.names = F, "html", caption = "3.4 Minimum survival to Benicia Bridge East Span (using CJS survival model)") %>%
          kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))
}else if (length(table(detects_benicia$general_location))== 1){
   WR.surv1 <- data.frame("Release Group"=NA, "Survival (%)"="NOT ENOUGH DETECTIONS", "SE"=NA, "95% lower C.I."=NA, "95% upper C.I."=NA, "Detection efficiency (%)"=NA)
  colnames(WR.surv1) <- c("Release Group", "Survival (%)", "SE", "95% lower C.I.", "95% upper C.I.", "Detection efficiency (%)")
  print(kable(WR.surv1, row.names = F, "html", caption = "3.4 Minimum survival to Benicia Bridge East Span (using CJS survival model)") %>%
          kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))
} else {

  benicia <- read.csv("benicia_surv.csv", stringsAsFactors = F)
  benicia$RelDT <- as.POSIXct(benicia$RelDT)

  ## Only do survival to Benicia here
  test3 <- detects_study[detects_study$rkm < 53,]

  ## Create inp for survival estimation

  inp <- as.data.frame(dcast(test3, TagCode ~ rkm, fun.aggregate = length))

  ## Sort columns by river km in descending order
  # Count number of genlocs
  gen_loc_sites <- ncol(inp)-1

  inp <- inp[,c(1,order(names(inp[,2:(gen_loc_sites+1)]), decreasing = T)+1)]

  inp <- merge(study_tagcodes, inp, by.x = "TagID_Hex", by.y = "TagCode", all.x = T)

  inp2 <- inp[,(ncol(inp)-gen_loc_sites+1):ncol(inp)]
  inp2[is.na(inp2)] <- 0
  inp2[inp2 > 0] <- 1

  inp <- cbind(inp, inp2)
  groups <- as.character(sort(unique(inp$Release)))
  groups_w_detects <- names(table(test3$Release))

  inp[,groups] <- 0
  for (i in groups) {
    inp[as.character(inp$Release) == i, i] <- 1
  }

  inp$inp_final <- paste("1",apply(inp2, 1, paste, collapse=""),sep="")


  if(length(groups) > 1){
  ## make sure factor levels have a release that has detections first. if first release in factor order has zero #detectins, model goes haywire
    inp.df <- data.frame(ch = as.character(inp$inp_final), freq = 1, rel = inp$Release, stringsAsFactors = F)

    WR.process <- process.data(inp.df, model="CJS", begin.time=1)

    WR.ddl <- make.design.data(WR.process)

    WR.mark.all <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time),p=list(formula=~time)), silent = T, output = F)

    inp.df <- inp.df[inp.df$rel %in% groups_w_detects,]
    inp.df$rel <- factor(inp.df$rel, levels = groups_w_detects)
    if(length(groups_w_detects) > 1){
      WR.process <- process.data(inp.df, model="CJS", begin.time=1, groups = "rel")

      WR.ddl <- make.design.data(WR.process)
      WR.mark.rel <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time*rel),p=list(formula=~time)), silent = T, output = F)
    }else{
      WR.process <- process.data(inp.df, model="CJS", begin.time=1)

      WR.ddl <- make.design.data(WR.process)
      WR.mark.rel <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time),p=list(formula=~time)), silent = T, output = F)
    }
    WR.surv <- cbind(Release = "ALL",round(WR.mark.all$results$real[1,c("estimate", "se", "lcl", "ucl")] * 100,1))
    WR.surv.rel <- cbind(Release = groups_w_detects, round(WR.mark.rel$results$real[seq(from=1,to=length(groups_w_detects)*2,by = 2),c("estimate", "se", "lcl", "ucl")] * 100,1))
    WR.surv.rel <- merge(WR.surv.rel, data.frame(Release = groups), all.y = T)
    WR.surv.rel[is.na(WR.surv.rel$estimate),"estimate"] <- 0
    WR.surv <- rbind(WR.surv, WR.surv.rel)

  }else{
    inp.df <- data.frame(ch = as.character(inp$inp_final), freq = 1, stringsAsFactors = F)

    WR.process <- process.data(inp.df, model="CJS", begin.time=1)


    WR.ddl <- make.design.data(WR.process)

    WR.mark.all <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time),p=list(formula=~time)), silent = T, output = F)

    WR.surv <- cbind(Release = c("ALL", groups),round(WR.mark.all$results$real[1,c("estimate", "se", "lcl", "ucl")] * 100,1))

  }
  WR.surv$Detection_efficiency <- NA
  WR.surv[1,"Detection_efficiency"] <- round(WR.mark.all$results$real[gen_loc_sites+1,"estimate"] * 100,1)

  WR.surv1 <- WR.surv
  colnames(WR.surv1) <- c("Release Group", "Survival (%)", "SE", "95% lower C.I.", "95% upper C.I.", "Detection efficiency (%)")

  print(kable(WR.surv1, row.names = F, "html", caption = "3.4 Minimum survival to Benicia Bridge East Span (using CJS survival model)") %>%
          kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))

  ## Find mean release time per release group, and ALL
  reltimes <- aggregate(list(RelDT = study_tagcodes$RelDT), by = list(Release = study_tagcodes$Release), FUN = mean)
  reltimes <- rbind(reltimes, data.frame(Release = "ALL", RelDT = mean(study_tagcodes$RelDT)))

  ## Assign whether the results are tentative or final
  quality <- "tentative"
  if(endtime < as.Date(format(Sys.time(), "%Y-%m-%d"))) { quality <- "final"}
  WR.surv <- merge(WR.surv, reltimes, by = "Release", all.x = T)

  WR.surv$RelDT <- as.POSIXct(WR.surv$RelDT, origin = '1970-01-01')

  ## remove old benicia record for this studyID
  benicia <- benicia[!benicia$StudyID == unique(study_tagcodes$StudyID),]

  benicia <- rbind(benicia, data.frame(WR.surv, StudyID = unique(study_tagcodes$StudyID), data_quality = quality))

  write.csv(benicia, "benicia_surv.csv", row.names = F, quote = F)

}
3.4 Minimum survival to Benicia Bridge East Span (using CJS survival model)
Release Group Survival (%) SE 95% lower C.I. 95% upper C.I. Detection efficiency (%)
ALL 2.3 0.5 1.5 3.5 94.4
March Release 4.4 1.1 2.7 7.1 NA
May Release - Coleman control 2.1 1.4 0.5 7.9 NA
May Release - Nimbus control 0.5 0.5 0.1 3.5 NA
May Release - Rice field rear 1.4 0.7 0.5 3.6 NA
setwd(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products", sep = ""))


if (nrow(detects_study) == 0){
    results_short <- data.frame("Measure"=NA, "Estimate"="NO DETECTIONS YET", "SE"=NA, "95% lower C.I."=NA, "95% upper C.I."=NA)
    colnames(results_short) <- c("Measure", "Estimate", "SE", "95% lower C.I.", "95% upper C.I.")
    print(kable(results_short, row.names = F, "html", caption = "3.5 Minimum through-Delta survival: City of Sacramento to Benicia (using CJS survival model)") %>%
            kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))
}else{
  ## Only do survival to Georg split for now
  test4 <- detects_study[detects_study$general_location %in% c("I80-50_Br", "Benicia_west", "Benicia_east"),]

  if(nrow(test4[test4$general_location =="Benicia_west",]) == 0 |
     nrow(test4[test4$general_location =="Benicia_east",]) == 0){
    results_short <- data.frame("Measure"=NA, "Estimate"="NOT ENOUGH DETECTIONS", "SE"=NA, "95% lower C.I."=NA, "95% upper C.I."=NA)
    colnames(results_short) <- c("Measure", "Estimate", "SE", "95% lower C.I.", "95% upper C.I.")
    print(kable(results_short, row.names = F, "html", caption = "3.5 Minimum through-Delta survival: City of Sacramento to Benicia (using CJS survival model)") %>%
            kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))

  }else{

  Delta <- read.csv("Delta_surv.csv", stringsAsFactors = F)
  Delta$RelDT <- as.POSIXct(Delta$RelDT)

  inp <- as.data.frame(dcast(test4, TagCode ~ general_location, fun.aggregate = length))

  ## Sort columns by river km in descending order
  inp <- inp[,c("TagCode","I80-50_Br", "Benicia_east", "Benicia_west")]

  # Count number of genlocs
  gen_loc_sites <- ncol(inp)-1

  inp <- inp[,c(1,order(names(inp[,2:(gen_loc_sites+1)]), decreasing = T)+1)]

  inp <- merge(study_tagcodes, inp, by.x = "TagID_Hex", by.y = "TagCode", all.x = T)

  inp2 <- inp[,(ncol(inp)-gen_loc_sites+1):ncol(inp)]
  inp2[is.na(inp2)] <- 0
  inp2[inp2 > 0] <- 1

  inp <- cbind(inp, inp2)
  groups <- as.character(sort(unique(inp$Release)))

  inp[,groups] <- 0
  for (i in groups) {
    inp[as.character(inp$Release) == i, i] <- 1
  }

  if(length(groups) > 1){
    inp$inp_final <- paste("1",apply(inp2, 1, paste, collapse=""), " ",apply(inp[,groups], 1, paste, collapse=" ")," ;",sep = "")
  }else{
    inp$inp_final <- paste("1",apply(inp2, 1, paste, collapse=""), " ",inp[,groups]," ;",sep = "")
  }


  write.table(inp$inp_final,"WRinp.inp",row.names = F, col.names = F, quote = F)

  if(length(groups) > 1){

    WRinp <- convert.inp("WRinp.inp", group.df=data.frame(rel=groups))
    WR.process <- process.data(WRinp, model="CJS", begin.time=1, groups = "rel")

    WR.ddl <- make.design.data(WR.process)

    WR.mark.all <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time),p=list(formula=~time)), silent = T, output = F)

    WR.mark.rel <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time*rel),p=list(formula=~time)), silent = T, output = F)

    WR.surv <- round(WR.mark.all$results$real[2,c("estimate", "se", "lcl", "ucl")] * 100,1)
    WR.surv <- rbind(WR.surv, round(WR.mark.rel$results$real[seq(from=2,to=length(groups)*3,by = 3),c("estimate", "se", "lcl", "ucl")] * 100,1))

  }else{

    WRinp <- convert.inp("WRinp.inp")
    WR.process <- process.data(WRinp, model="CJS", begin.time=1)


    WR.ddl <- make.design.data(WR.process)

    WR.mark.all <- mark(WR.process, WR.ddl, model.parameters=list(Phi=list(formula=~time),p=list(formula=~time)), silent = T, output = F)

    WR.surv <- round(WR.mark.all$results$real[2,c("estimate", "se", "lcl", "ucl")] * 100,1)

  }


  WR.surv <- cbind(Release = c("ALL", groups), WR.surv)

  WR.surv1 <- WR.surv
  colnames(WR.surv1) <- c("Release Group", "Survival (%)", "SE", "95% lower C.I.", "95% upper C.I.")

  print(kable(WR.surv1, row.names = F, "html", caption = "3.5 Minimum through-Delta survival: City of Sacramento to Benicia (using CJS survival model)") %>%
          kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))

  WR.surv <- merge(WR.surv, reltimes, by = "Release", all.x = T)

  WR.surv$RelDT <- as.POSIXct(WR.surv$RelDT, origin = '1970-01-01')

  ## remove old benicia record for this studyID
  Delta <- Delta[!Delta$StudyID %in% unique(detects_study$StudyID),]

  Delta <- rbind(Delta, data.frame(WR.surv, StudyID = unique(study_tagcodes$StudyID), data_quality = quality))

  write.csv(Delta, "Delta_surv.csv", row.names = F, quote = F)
  }
}
3.5 Minimum through-Delta survival: City of Sacramento to Benicia (using CJS survival model)
Release Group Survival (%) SE 95% lower C.I. 95% upper C.I.
ALL 5.6 1.3 3.5 8.8
March Release 13.1 3.5 7.7 21.6
May Release - Coleman control 4.3 3.1 1.1 16.2
May Release - Nimbus control 1.2 1.2 0.2 8.2
May Release - Rice field rear 2.6 1.3 0.9 6.9



4. Detections statistics at all realtime receivers


setwd(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products", sep = ""))

if (nrow(detects_study) == 0){
  "No detections yet"
} else {

  arrivals <- aggregate(list(DateTime_PST = detects_study$DateTime_PST), by = list(general_location = detects_study$general_location, TagCode = detects_study$TagCode), FUN = min)

  tag_stats <- aggregate(list(First_arrival = arrivals$DateTime_PST),
                         by= list(general_location = arrivals$general_location),
                         FUN = min)
  tag_stats <- merge(tag_stats,
                     aggregate(list(Mean_arrival = arrivals$DateTime_PST),
                         by= list(general_location = arrivals$general_location),
                         FUN = mean),
                     by = c("general_location"))
  tag_stats <- merge(tag_stats,
                     aggregate(list(Last_arrival = arrivals$DateTime_PST),
                         by= list(general_location = arrivals$general_location),
                         FUN = max),
                     by = c("general_location"))
  tag_stats <- merge(tag_stats,
                     aggregate(list(Fish_count = arrivals$TagCode),
                         by= list(general_location = arrivals$general_location),
                         FUN = function(x) {length(unique(x))}),
                     by = c("general_location"))
  tag_stats$Percent_arrived <- round(tag_stats$Fish_count/study_count * 100,2)

  tag_stats <- merge(tag_stats, unique(gen_locs[,c("general_location", "rkm")]))

  tag_stats <- tag_stats[order(tag_stats$rkm, decreasing = T),]

  tag_stats[,c("First_arrival", "Mean_arrival", "Last_arrival")] <- format(tag_stats[,c("First_arrival", "Mean_arrival", "Last_arrival")], tz = "Etc/GMT+8")

  print(kable(tag_stats, row.names = F,
              caption = "4.1 Detections for all releases combined",
              "html") %>%
          kable_styling(bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))

  for (j in sort(unique(study_tagcodes$Release))) {

    if(nrow(detects_study[detects_study$Release == j,]) > 0 ) {

      temp <- detects_study[detects_study$Release == j,]

        arrivals1 <- aggregate(list(DateTime_PST = temp$DateTime_PST), by = list(general_location = temp$general_location, TagCode = temp$TagCode), FUN = min)

      rel_count <- nrow(study_tagcodes[study_tagcodes$Release == j,])

      tag_stats1 <- aggregate(list(First_arrival = arrivals1$DateTime_PST),
                             by= list(general_location = arrivals1$general_location),
                             FUN = min)
      tag_stats1 <- merge(tag_stats1,
                         aggregate(list(Mean_arrival = arrivals1$DateTime_PST),
                             by= list(general_location = arrivals1$general_location),
                             FUN = mean),
                         by = c("general_location"))
      tag_stats1 <- merge(tag_stats1,
                   aggregate(list(Last_arrival = arrivals1$DateTime_PST),
                       by= list(general_location = arrivals1$general_location),
                       FUN = max),
                   by = c("general_location"))
      tag_stats1 <- merge(tag_stats1,
                         aggregate(list(Fish_count = arrivals1$TagCode),
                                   by= list(general_location = arrivals1$general_location),
                                   FUN = function(x) {length(unique(x))}),
                         by = c("general_location"))

      tag_stats1$Percent_arrived <- round(tag_stats1$Fish_count/rel_count * 100,2)

      tag_stats1 <- merge(tag_stats1, unique(gen_locs[,c("general_location", "rkm")]))

      tag_stats1 <- tag_stats1[order(tag_stats1$rkm, decreasing = T),]

      tag_stats1[,c("First_arrival", "Mean_arrival", "Last_arrival")] <- format(tag_stats1[,c("First_arrival", "Mean_arrival", "Last_arrival")], tz = "Etc/GMT+8")

      final_stats <- kable(tag_stats1, row.names = F,
            caption = paste("4.2 Detections for",j,"release groups", sep = " "),
            "html")

      print(kable_styling(final_stats, bootstrap_options = c("striped", "hover", "condensed", "responsive", "bordered"), full_width = F, position = "left"))

    } else {
      cat("\n\n\\pagebreak\n")
      print(paste("No detections for",j,"release group yet", sep=" "), quote = F)
      cat("\n\n\\pagebreak\n")
    }
  }
}
4.1 Detections for all releases combined
general_location First_arrival Mean_arrival Last_arrival Fish_count Percent_arrived rkm
TowerBridge 2020-03-20 18:20:13 2020-05-12 21:33:47 2020-06-06 01:02:26 323 34.07 172.000
I80-50_Br 2020-03-20 18:20:18 2020-05-12 03:23:19 2020-06-06 01:29:35 308 32.49 170.748
Georgiana_Slough1 2020-03-22 11:46:28 2020-05-07 08:28:11 2020-06-02 12:58:11 20 2.11 119.208
Sac_BlwGeorgiana 2020-03-22 11:49:28 2020-05-08 14:32:33 2020-06-09 14:33:03 73 7.70 119.058
Georgiana_Slough2 2020-03-22 11:53:00 2020-05-07 10:03:33 2020-06-02 13:06:52 20 2.11 118.758
Sac_BlwGeorgiana2 2020-03-22 12:08:02 2020-05-08 18:01:56 2020-06-09 14:44:37 68 7.17 118.398
Benicia_east 2020-04-02 16:40:25 2020-04-27 20:08:55 2020-06-08 11:27:48 21 2.22 52.240
Benicia_west 2020-04-03 14:34:13 2020-04-21 23:50:28 2020-06-08 11:51:43 18 1.90 52.040
4.2 Detections for March Release release groups
general_location First_arrival Mean_arrival Last_arrival Fish_count Percent_arrived rkm
TowerBridge 2020-03-20 18:20:13 2020-03-23 23:59:59 2020-04-10 01:44:44 88 25.58 172.000
I80-50_Br 2020-03-20 18:20:18 2020-03-24 09:00:05 2020-04-10 02:32:29 88 25.58 170.748
Georgiana_Slough1 2020-03-22 11:46:28 2020-03-30 19:58:31 2020-04-07 12:29:05 8 2.33 119.208
Sac_BlwGeorgiana 2020-03-22 11:49:28 2020-03-30 22:48:05 2020-04-13 03:54:05 28 8.14 119.058
Georgiana_Slough2 2020-03-22 11:53:00 2020-03-30 22:50:08 2020-04-07 12:34:40 8 2.33 118.758
Sac_BlwGeorgiana2 2020-03-22 12:08:02 2020-03-30 23:05:37 2020-04-13 04:14:24 26 7.56 118.398
Benicia_east 2020-04-02 16:40:25 2020-04-08 16:13:13 2020-04-13 12:57:03 14 4.07 52.240
Benicia_west 2020-04-03 14:34:13 2020-04-09 09:30:29 2020-04-13 15:03:26 14 4.07 52.040
4.2 Detections for May Release - Coleman control release groups
general_location First_arrival Mean_arrival Last_arrival Fish_count Percent_arrived rkm
TowerBridge 2020-05-31 03:03:39 2020-05-31 09:46:44 2020-06-02 03:24:59 36 36 172.000
I80-50_Br 2020-05-31 03:53:25 2020-05-31 12:05:20 2020-06-02 04:11:33 36 36 170.748
Georgiana_Slough1 2020-06-01 10:22:46 2020-06-01 10:22:46 2020-06-01 10:22:46 1 1 119.208
Sac_BlwGeorgiana 2020-05-31 22:29:27 2020-06-01 06:44:56 2020-06-01 19:23:32 12 12 119.058
Georgiana_Slough2 2020-06-01 10:34:10 2020-06-01 10:34:10 2020-06-01 10:34:10 1 1 118.758
Sac_BlwGeorgiana2 2020-05-31 23:11:23 2020-06-01 11:27:22 2020-06-03 06:00:53 12 12 118.398
Benicia_east 2020-06-03 03:57:44 2020-06-05 19:42:46 2020-06-08 11:27:48 2 2 52.240
Benicia_west 2020-06-08 11:51:43 2020-06-08 11:51:43 2020-06-08 11:51:43 1 1 52.040
4.2 Detections for May Release - Nimbus control release groups
general_location First_arrival Mean_arrival Last_arrival Fish_count Percent_arrived rkm
TowerBridge 2020-05-31 02:59:03 2020-05-31 19:16:10 2020-06-06 01:02:26 72 34.45 172.000
I80-50_Br 2020-05-31 03:38:37 2020-05-31 20:33:28 2020-06-06 01:29:35 64 30.62 170.748
Georgiana_Slough1 2020-06-01 02:23:39 2020-06-01 17:25:09 2020-06-02 12:58:11 4 1.91 119.208
Sac_BlwGeorgiana 2020-05-31 20:10:13 2020-06-02 16:34:41 2020-06-09 14:33:03 12 5.74 119.058
Georgiana_Slough2 2020-06-01 02:34:56 2020-06-01 17:33:52 2020-06-02 13:06:52 4 1.91 118.758
Sac_BlwGeorgiana2 2020-05-31 20:31:50 2020-06-02 17:09:34 2020-06-09 14:44:37 12 5.74 118.398
Benicia_east 2020-06-08 10:33:21 2020-06-08 10:33:21 2020-06-08 10:33:21 1 0.48 52.240
4.2 Detections for May Release - Rice field rear release groups
general_location First_arrival Mean_arrival Last_arrival Fish_count Percent_arrived rkm
TowerBridge 2020-05-31 02:20:16 2020-05-31 12:13:55 2020-06-02 21:44:40 127 43.05 172.000
I80-50_Br 2020-05-31 03:19:16 2020-05-31 13:54:20 2020-06-02 18:32:54 120 40.68 170.748
Georgiana_Slough1 2020-05-31 21:25:59 2020-06-01 03:38:54 2020-06-01 11:46:41 7 2.37 119.208
Sac_BlwGeorgiana 2020-05-31 22:28:10 2020-06-01 06:49:14 2020-06-03 02:03:15 21 7.12 119.058
Georgiana_Slough2 2020-05-31 21:34:56 2020-06-01 04:48:37 2020-06-01 11:53:15 7 2.37 118.758
Sac_BlwGeorgiana2 2020-05-31 23:12:41 2020-06-01 07:41:17 2020-06-03 02:56:37 18 6.10 118.398
Benicia_east 2020-06-03 03:40:00 2020-06-04 00:30:53 2020-06-04 08:08:04 4 1.36 52.240
Benicia_west 2020-06-03 03:43:56 2020-06-03 22:43:16 2020-06-04 08:42:33 3 1.02 52.040
## Set fig height for next plot here, based on how long fish have been at large
figheight <- max(c(3,as.numeric(difftime(Sys.Date(), min(study_tagcodes$RelDT), units = "days")) / 4))


4.3 Fish arrivals per day

setwd(paste(file.path(Sys.getenv("USERPROFILE"),"Desktop",fsep="\\"), "\\Real-time data massaging\\products", sep = ""))

if (nrow(detects_study) == 0){
  "No detections yet"
} else {

  beacon_by_day <- fread("beacon_by_day.csv", stringsAsFactors = F)
  beacon_by_day$day <- as.Date(beacon_by_day$day)

  arrivals$day <- as.Date(format(arrivals$DateTime_PST, "%Y-%m-%d"))

  arrivals_per_day <- aggregate(list(New_arrivals = arrivals$TagCode), by = list(day = arrivals$day, general_location = arrivals$general_location), length)
  arrivals_per_day$day <- as.Date(arrivals_per_day$day)

  ## Now subset to only look at data for the correct beacon for that day
  beacon_by_day <- as.data.frame(beacon_by_day[which(beacon_by_day$TagCode == beacon_by_day$beacon),])

  ## Now only keep beacon by day for days since fish were released
  beacon_by_day <- beacon_by_day[beacon_by_day$day >= as.Date(min(study_tagcodes$RelDT)) & beacon_by_day$day <= endtime,]

  beacon_by_day <- merge(beacon_by_day, gen_locs[,c("location", "general_location","rkm")], by = "location", all.x = T)

  arrivals_per_day <- merge(beacon_by_day, arrivals_per_day, all.x = T, by = c("general_location", "day"))

  arrivals_per_day$day <- factor(arrivals_per_day$day)

  ## Remove bench test and other NA locations
  arrivals_per_day <- arrivals_per_day[!arrivals_per_day$general_location == "Bench_test",]
  arrivals_per_day <- arrivals_per_day[is.na(arrivals_per_day$general_location) == F,]

  ## Change order of data to plot decreasing rkm
  arrivals_per_day <- arrivals_per_day[order(arrivals_per_day$rkm, decreasing = T),]
  arrivals_per_day$general_location <- factor(arrivals_per_day$general_location, unique(arrivals_per_day$general_location))


  ggplot(data=arrivals_per_day, aes(x=general_location, y=fct_rev(as_factor(day)))) +
  geom_tile(fill = "lightgray", color = "black") +
  geom_text(aes(label=New_arrivals)) +
  labs(x="General Location", y = "Date") +
  theme(panel.background = element_blank(), axis.text.x = element_text(angle = 90, hjust = 1))
}
Gray tiles = receiver location was operational, white tiles = receiver location non-operational

Gray tiles = receiver location was operational, white tiles = receiver location non-operational

rm(list = ls())
cleanup(ask = F)
